How to Identify a Worn-Out Clutch Plate?

time
5 mins read
feature image

Today at Motor Guide, we are going to discuss how to easily identify if the clutch plate—an extremely important component in a vehicle's manual gearbox—is worn out. As professionals in this field, we notice that many vehicle owners do not realize this issue until the clutch is completely worn out and they are left stranded on the road. Therefore, today we will explain the technical side of this clearly from beginning to end.

What Does the Clutch Plate Do?

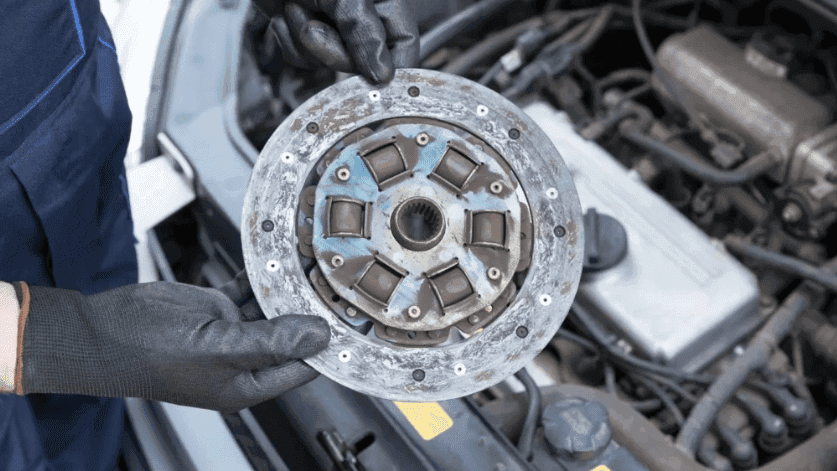

First, let's look at the function of the clutch plate. Simply put, it controls the transmission of the power generated by the engine to the wheels through the gearbox. The clutch plate is squeezed between the engine's flywheel and the pressure plate. The wearing away of the friction lining on its surface is what we refer to as a "worn clutch." When this lining wears down, the engine's power is not properly transmitted to the gearbox, resulting in what is known as Clutch Slipping.

1. Clutch Slipping (Lack of Acceleration)

Now let's look at the primary symptom that indicates a worn clutch plate. When driving—for example, in a higher gear like 3rd, 4th, or 5th—if you suddenly press the accelerator pedal and the engine RPM rises rapidly but the vehicle's speed does not increase accordingly, this is called Clutch Slipping. This situation occurs because the clutch plate slips midway without properly transferring the engine power to the wheels.

2. Changes in the Clutch Pedal Biting Point

Secondly, another important technical sign to watch for is a change in the clutch pedal's level. Normally, in a healthy clutch system, the biting point (where the clutch engages) is situated around the middle of the pedal travel. However, as the clutch plate wears down, the diaphragm spring fingers on the pressure plate rise, which changes the required pedal travel distance. Often, when the clutch plate is worn, the vehicle will only start to move when the clutch pedal is released very high up.

3. Difficulty Climbing Hills

The third point is difficulty navigating inclines. When driving in hilly areas or carrying a heavy load, if you feel a lack of power to move forward despite being in the right gear and accelerating, or if the vehicle rolls backward when starting on a slope, it is a strong indication that the clutch plate has worn out. In these situations, the reduced friction of the clutch plate severely hinders the transmission of engine torque to the wheels.

4. Unusual Burning Smell

Fourthly, we must mention the unusual smell that occurs when a clutch plate is wearing out. If you experience a strong burning smell (similar to burning brake pads) while driving in heavy traffic or after getting out of the car, it means the clutch plate is rubbing excessively against the flywheel and overheating. If this continues, the clutch plate can burn out completely.

5. Gear Shifting Issues

Fifth is difficulty in shifting gears. Many people assume that hard shifting is caused by a gearbox fault. However, if the clutch plate doesn't disconnect properly (Clutch Dragging), or if the hydraulic pressure in the clutch system is low, you will hear grinding noises and find it difficult to shift gears. This can be caused by faults in the clutch master cylinder, slave cylinder, or the clutch plate itself.

6. Unusual Noises

Additionally, we should pay attention to unusual noises when operating the clutch. If you hear a strange sound (such as a squeaking or grinding noise) the moment you press the clutch pedal, it could be due to a worn Clutch Release Bearing. Normally, the mechanically correct procedure is to replace this release bearing alongside the clutch plate.

A Simple Test to Check Your Clutch

There is a simple method we generally use to check for these faults. While the vehicle is stationary, pull the handbrake firmly. Start the engine, shift into 3rd gear, and slowly release the clutch pedal. If the engine stalls and shuts off immediately, you can assume your clutch plate is still in good condition. However, if the engine continues to run without stalling, or takes a while to stop, it clearly shows that your clutch plate is worn and slipping.

The Bad Habit of 'Clutch Riding'

When driving in heavy traffic on our roads, many drivers have the habit of keeping their foot resting on the clutch pedal. We call this 'Clutch Riding'. Constantly keeping pressure on the clutch like this causes the clutch plate to wear out unnecessarily and drastically reduces its lifespan. Therefore, ensure that you only use the clutch in the correct manner when driving a manual vehicle.

Motor Guide's Final Advice

Because of all these factors, if you notice any of the above-mentioned abnormalities when shifting gears or accelerating, do not delay—visit a reliable service center and have your clutch system inspected. If the clutch plate wears out completely, you could end up stranded on the road, and it may even cause damage to the flywheel, resulting in massive additional expenses.

Motor Guide's advice is to remember that the clutch plate is a component that gradually wears out over time. Always pay close attention to the changes you feel while driving. Avoid driving with your foot resting on the clutch pedal. If you notice any slipping or a strange burning smell, immediately consult a mechanic to inspect the clutch plate and protect yourself from greater future expenses.

And don't forget to always stay tuned with Motor Guide to learn more valuable information like this about modern vehicles and technology!

Nisaga Sandaru

Written by

Nisaga Sandaru

A versatile and highly experienced professional, currently an Automobile undergraduate at the University of Jaffna, with strong technical expertise grounded in hands-on work as a technician with SriLankan Airlines Ground Support Equipment (GSE). Holding an Automobile NVQ Level 3 qualification, along with specialized certifications in Vehicle ECU Programming and Diagnosis, and extensive experience in arc welding and vehicle body painting, and well equipped to handle complex automotive, diagnostic, and fabrication-related tasks with a high level of competence.
